Product Details
vein viewer finder device with wheeled Stand HFM-V550
The vein finder mainly takes the advantage of the blood hemoglobin absorption for near-infrared light stronger than other tissues, it makes the superficial blood vessels visualized···
Leave a message +8615221780619The vein finder mainly takes the advantage of the blood hemoglobin absorption for near-infrared light stronger than other tissues, it makes the superficial blood vessels visualized through the vein visualization technology; it is helpful to find, evaluate and position the superficial blood vessels, etc.
It can effectively improve patient' s satisfaction, reduce nurses' psychological pressure, reduce work intensity, and protect the doctors and patients from venipuncture issues.
It is widely used in Emergency, Outpatient, Pediatrics, Geriatrics, ICU, Dermatology, Hemodialysis Centers, and Cosmetology departments.
technical parameter
ltem | Specification |
Light Source | Near Infrared |
Projector Resolution(pixel) | 854*480 |
Projection Size | Large, Medium, Small, Very Smal! |
Projection Color | Black white, green, green background, red, purple, purple background |
Projection Brightness | 4 levels adjustable |
Projection Mode | Normal, enhanced, depth |
Depth Prompts | Deep, medium, shallow |
Resolution Speed | 60frames/s |
Resolution Deviation | <0.10mm |
Best Projection Distance | 200士20mm |
Minimum ldentified Blood Vessel Diameter | >0.4mm |
Wave Length | 750-950nm |
Maximum Detection Depth | <8mm |
Sleeping Function | 30 minutes no operation goes into sleeping function |
Display | 0.96inch OLED display module, displayingpixels, battery, brightness, color, mode, sleepcountdown etc. |
Main Unit Consumption | 50VA |
Power | 100~240V,50/60HZ,Adapter:12V,2.5A |
Battery | Internal 7.2V 2200mAhworking time >2.5h |

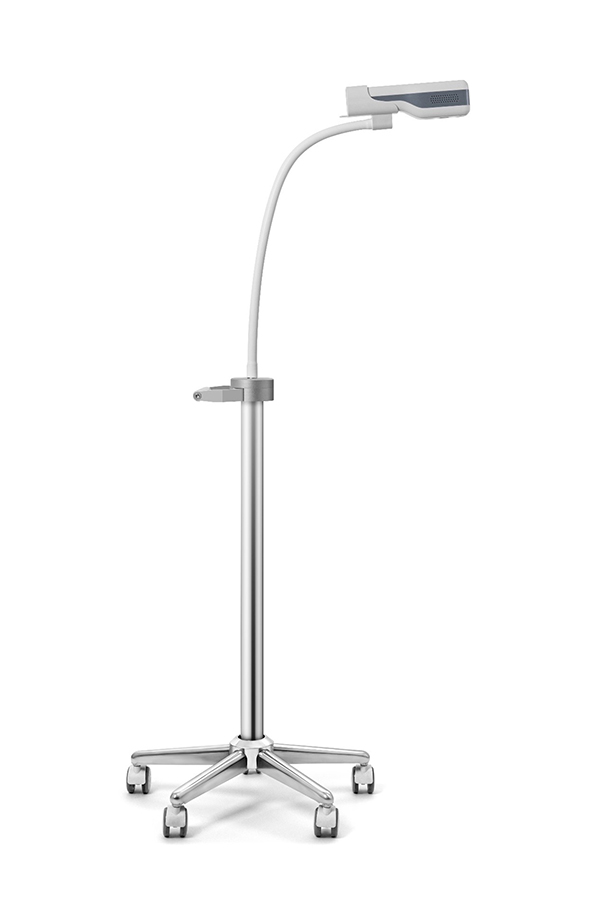

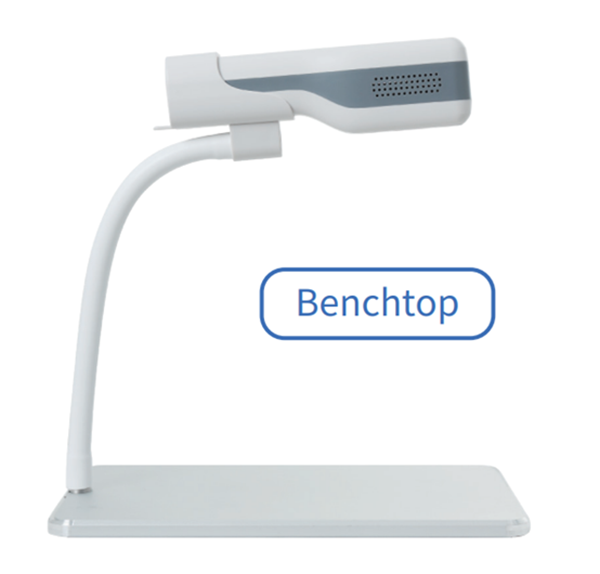

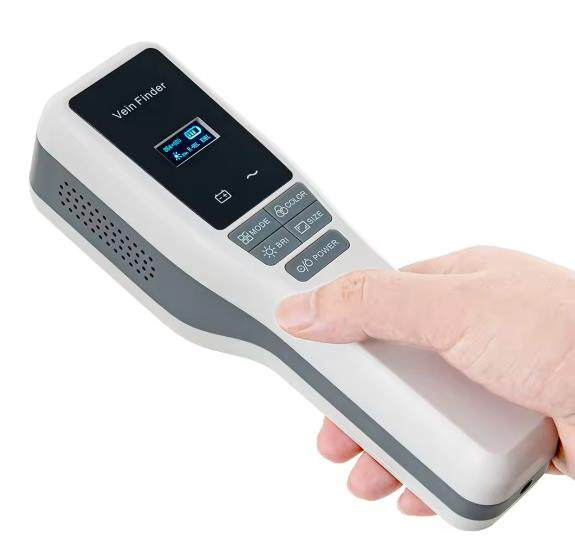

Fixed Option | Mobile stand, benchtop, handheld |
Weight | 480g |
Dimension | 220mm*65mm*65mm |
